In the evolution of modern home appliances, refrigerators have become increasingly advanced, focusing on precise temperature control, fast cooling, energy efficiency, and enhanced food preservation. At the core of these improvements lies the airflow cooling system, powered by a highly efficient DC motor.

In this case study, a well-known refrigerator brand sought to upgrade its cooling system for a new high-end model. After multiple evaluations, they selected the Chungfo HTD05036S12 DC motor as the driving force behind the internal air circulation system.

1. Why Refrigerators Require High-Performance DC Motors

A frost-free refrigerator relies on strong, stable airflow to distribute cold air evenly throughout various compartments. If the motor underperforms, the unit may suffer from:

Uneven temperature distribution

Longer cooling time

Higher power consumption

Localized cold spots

Reduced freshness retention

Therefore, refrigerator manufacturers set strict requirements for motor performance, including:

High rotation speed

Low noise

Long lifespan

Low energy consumption

Stable airflow pressure

The HTD05036S12 DC motor fully meets these conditions.

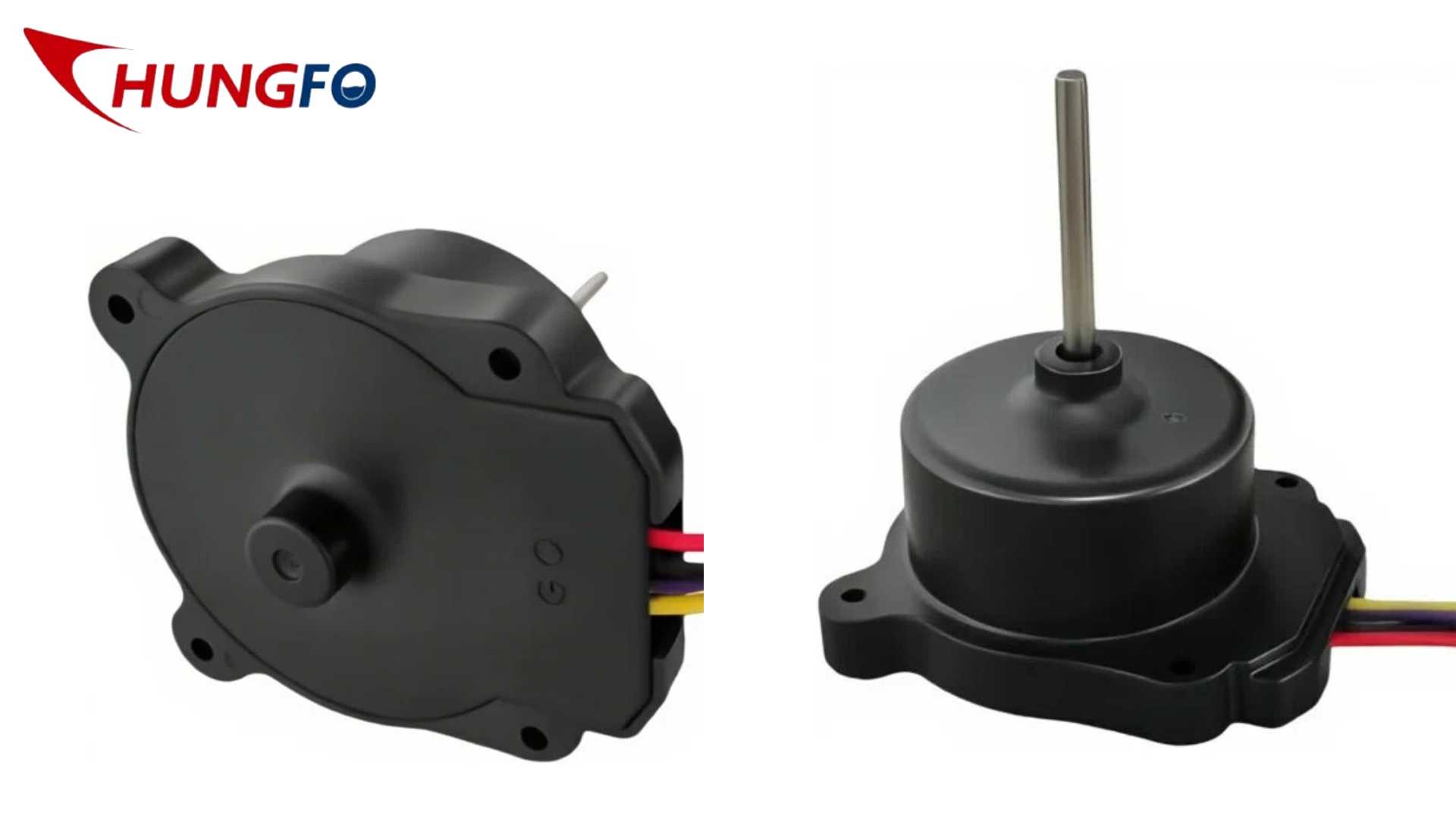

2. Technical Specifications of HTD05036S12 DC Motor

Specification：

Model ：HTD05036S12

Voltage ：12V DC

Speed ：6000RPM ±10% (no load)

Current ：0.13A ±15%

Bearing ：Sleeve Bearing

Pressure ：29.10 mmAq (customizable)

Options Function wires available (FG / PWM)

3. Key Advantages of This Motor in Refrigerator Applications

1. High-speed performance

6000RPM brings rapid cold air circulation, significantly boosting initial cooling efficiency.

2. Low energy consumption

Only 0.13A current draw, helping the refrigerator achieve higher energy efficiency ratings.

3. Quiet operation

The sleeve-bearing design ensures low noise, essential for home environments.

4. Strong pressure output

29.10 mmAq airflow pressure enables effective cooling even through multi-layer channels.

5. Fully customizable

Manufacturers may request:

FG speed signal

PWM speed control

Moisture-resistant features

Adjusted airflow and pressure

Perfect for intelligent and high-end refrigerator models.

4. Real-World Performance Improvements

After integrating the HTD05036S12, the brand observed measurable improvements:

• 18% faster initial cooling

Cold zones reach target temperature significantly quicker.

• Over 20% improvement in temperature uniformity

All compartments maintain consistent cooling, improving food preservation.

• Noise reduction by 2–3 dB

Enhanced airflow design combined with the motor’s low-noise structure.

• 8–12% lower energy consumption

Lower system load contributes to better energy ratings.

• Long-term reliability exceeding 30,000 hours

Suitable for long daily operation cycles.

5. Why Manufacturers Choose Chungfo

24 years of specialization in cooling motors and fans

Capability to provide complete airflow system suggestions

Strict quality control including vibration, high-temp, and aging tests

Comprehensive customization based on cooling system design

Strong technical support and rapid response for OEM/ODM needs

6.Company Introduction

Since 2000, Guangdong Chungfo Technology has offered high-quality cooling components for home appliances, industrial equipment, and ventilation systems, including AC fans, DC fans, and blowers.
