As electronic devices continue to evolve toward slimmer and more compact designs, internal space has become increasingly limited. From consumer electronics to communication equipment and smart devices, higher performance is expected within smaller enclosures. This trend places significant demands on thermal management solutions, making traditional framed cooling fans less suitable in many applications. Frameless fans have emerged as a flexible alternative designed specifically for space-constrained environments.

Rather than simply removing the outer frame, frameless fan designs focus on structural optimization and system-level integration to maximize airflow efficiency within limited space.

New Cooling Requirements in Slim Electronic Devices

Compact electronic devices feature highly integrated components, resulting in concentrated heat generation and faster temperature rise. At the same time, limited internal volume restricts airflow paths, making conventional cooling solutions less effective.

In such conditions, a dc cooling fan must deliver stable thermal performance while offering flexibility in size, thickness, and installation. Frameless fans address these requirements by allowing closer integration with device structures and airflow channels.

Structural Characteristics and Advantages of Frameless Fans

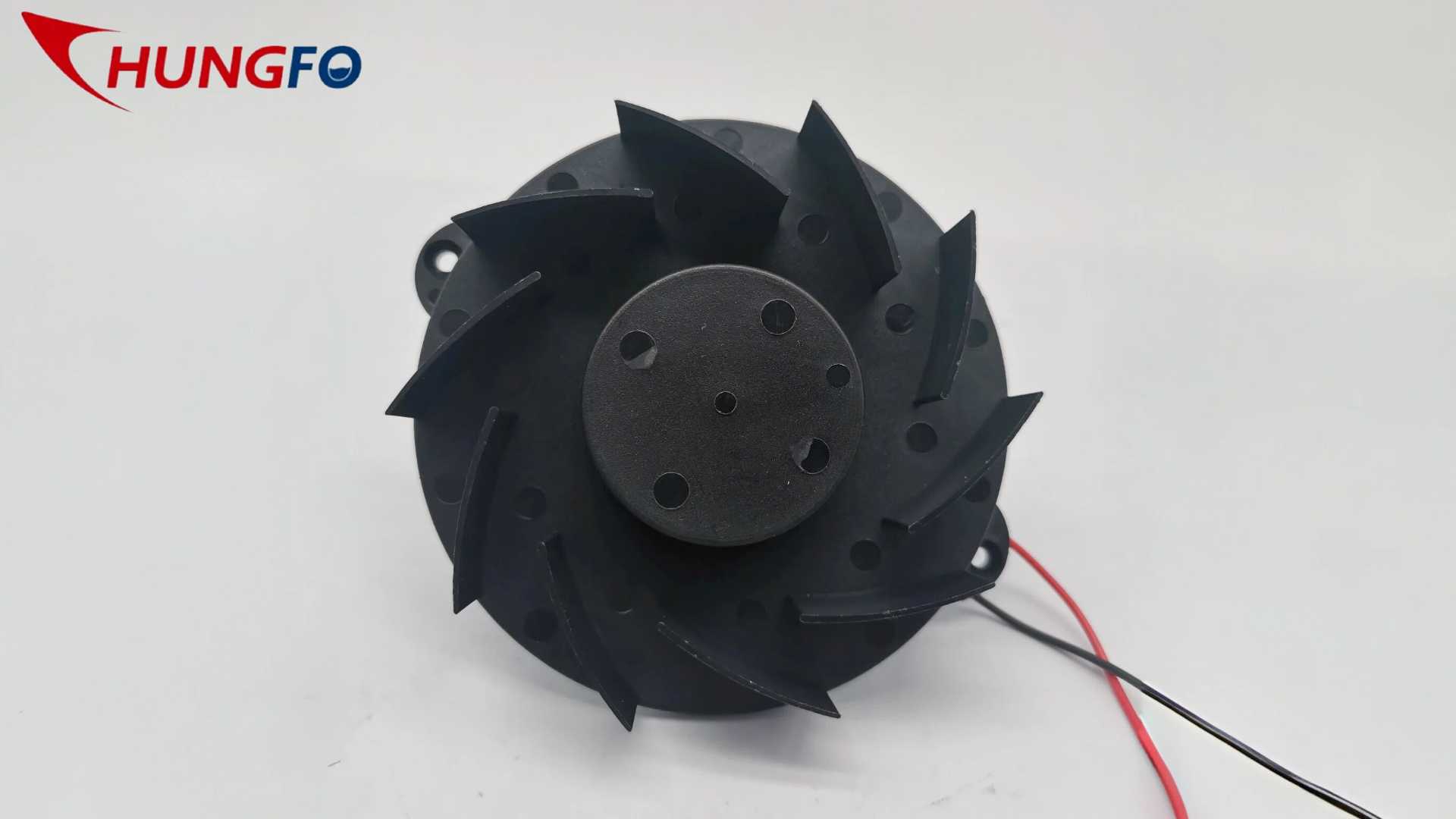

Frameless fans eliminate the traditional outer housing, enabling the impeller to work directly with the device enclosure or internal ducting. This approach reduces non-functional structural volume and allows more space for effective airflow.

In slim devices, frameless designs conform more closely to internal cavities, reducing air leakage and improving airflow utilization. This makes them particularly effective for targeted cooling of specific heat-generating components.

Compatibility With Different Fan Types

Frameless design concepts are not limited to a single fan structure. They can be applied to both axial and centrifugal configurations depending on application needs.

When combined with an axial fan dc structure, frameless designs help minimize overall thickness while maintaining consistent airflow. This combination is commonly found in laptops, tablets, and compact control modules.

For applications requiring higher pressure within confined spaces, frameless blower fans can work directly with internal airflow channels to deliver focused cooling without increasing device size.

Benefits for System Airflow Design

The true value of frameless fans becomes apparent at the system level. Their open structure allows designers greater freedom to optimize inlet and outlet placement, creating more efficient airflow paths.

This customization reduces airflow short-circuiting and minimizes wasted circulation, ensuring that limited airflow resources are used effectively. In compact electronics, such system-level optimization often delivers greater benefits than simply increasing fan performance.

Energy Efficiency and Noise Performance

Energy consumption and acoustic performance are critical considerations in slim devices. By reducing structural airflow resistance, frameless fans can achieve required cooling at lower rotational speeds.

Lower operating speeds reduce power consumption of the dc cooling fan and significantly improve noise characteristics, which is especially important for user-facing electronic products.

Reliability and Durability Considerations

Although frameless fans feature simplified structures, they are not inherently less reliable. When designed as part of an integrated cooling system, mounting stability and operating conditions can be carefully controlled.

By addressing vibration, fixation methods, and material compatibility during the design phase, frameless fans can achieve long-term reliability comparable to traditional framed designs.

The Importance of Manufacturing Expertise

Frameless fan applications demand a high level of design coordination between the fan and the device enclosure. Achieving optimal performance requires experience in airflow modeling, structural integration, and application-specific customization.

China Chungfo fan leverages extensive manufacturing and application expertise to deliver frameless fan and dc cooling fan solutions tailored for slim and compact electronic devices.

Conclusion

As electronic devices continue to shrink in size while increasing in performance, thermal management solutions must evolve accordingly. Frameless fans offer a flexible and efficient approach to cooling in space-constrained environments. Whether combined with axial fan dc designs for efficient airflow or with blower fans for targeted pressure delivery, frameless fans are becoming an increasingly important element in modern compact electronic device cooling systems.
